G2 Dew Point Generator

RH Systems G2 Dew Point Generator

Precision Humidity Generation

The G2 produces highly accurate humidity values based on RH Systems’ unique hybrid combination of the NIST proven “two-pressure” and “two-temperature” humidity generation techniques. It delivers a humidified gas stream, accurately controlled to a variety of user selectable humidity parameters such as %RH, dew point, frost point, ppm, or vapor pressure. By accurately measuring the temperature and pressure at the point where the humidified gas is utilized, the G2 automatically adjusts for changes in dynamic conditions such as heat load or ambient pressure variation.

High Flow Capability

With flow rate capacity up to 100 standard liters per minute, the G2 ensures your external volume or test chamber rapidly achieves a stable, homogeneous humidity condition based on your defined RH or dew point setting.

Multiple External Temperatures

Three separate external temperature connections allow for determination of %RH at three completely independent temperatures. By splitting the high-flow gas stream and feeding into three separate chambers, with each chamber controlled at a different temperature, three unique %RH values will be produced. The G2 computes the resulting %RH at each of these three chambers based on the three external temperature measurements. Alternatively, install up to three temperature probes in one chamber to measure uniformity of temperature and its result on %RH.

Embedded System for Control and Communication

All operations of the G2 are automated by its real-time embedded control system. Its setpoints are commanded and data is retrieved via robust serial communications. There are three fully capable, yet fully independent RS-232 serial ports, allowing for a variety of communication options. For example, up to three PCs could be connected to three temperature chambers and to a single G2 which feeds humidified gas to them all. The three PCs communicate independently with the G2 to retrieve their specific temperature and humidity data.

Simple Application Integration

The G2 is supplied in a 19″ rack mountable format for integration within commercially available rack systems. A 19″ rack enclosures is available as an option. All electrical, fluid, and pneumatic connections are made at the back panel of the instrument. All fluid and pneumatic connections are via industry standard Swagelok fittings.

Two-Pressure Two-Temperature Hybrid Humidity Generation Technique

Utilizing the uniquely combined benefits of the two-pressure and two-temperature techniques, humidity is generated by fully saturating gas at a known temperature and pressure, then reducing the pressure to a lower value (typically ambient) and cooling or warming to an alternate temperature.

Humidity produced by this hybrid technique is determined from measurements of the temperatures and pressures alone, and does not rely on measurement of the water vapor content of the gas.

With RH Systems’ hybrid humidity generation technique, the G2 is a true humidity reference instrument suitable for high accuracy calibration, product conditioning, and test applications.

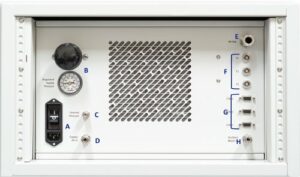

Back Panel

Connection panel side of instrument showing:
A. AC power receptacle and power switch
B. Inlet pressure regulator and indicator
C. External pressure sampling port, 1/8″ Swagelok
D. Compressed air supply input, 1/4″ Swagelok
E. Humidity controlled air output, 1/2″ Swagelok
F. External temperature sensor connections (3)
G. RS-232 serial communication ports (3)
H. Distilled water inlet, 1/4″ Swagelok


We reserve the right to change design or technical data without notice.


Generator Ranges:
Frost/dew point* -25 …+20°C
Relative humidity 10…95 %RH
Flow rate 5 …100 l/min
Saturator pressure Ambient …12 bar
(Ambient …175 psia)
Measurement Ranges:
External temperature sensor -50 …+100 °C
External pressure sensor 700 …1,200 mbar
(10.2 …17.4 psia)
Dew point stability ≤ ±0.02 °C
RH stability ≤ ±0.1 %RH
Pressure stability ≤ ±1 mbar
(≤ ±0.015 psia)
Saturator temperature stability ≤ ±0.01 °C
Flow control ≤ ±0.5% of full scale
Response time 10 …90 %RH: < 5 min
Standard Features:
External temperature sensor(s) Up to 3 simultaneous sensors, 100 ohm PRT
Pressure sensor Internal with 1/8″ Swagelok connection
Saturator water level Automatic level control, 1/4″ Swagelok water inlet
Gas Connection, inlet 1/4″ Swagelok, internally pressure regulated
Gas connection, outlet 1/2″ Swagelok, internally flow regulated
Control and data acquisition Optional touch screen controller and/or PC software
Size 6U, 19″ rack mountable module
Digital I/O 3, simultaneous, independent RS-232 connections
Additional Information
Power requirements 208-240 VAC, 50-60 Hz, 1500 W
Input pressure Max. 16 bar, oil free
Operation temperature* -10 …+40 °C (must be higher than generated dew point)
Storage temperature -20 …+50 °C
Humidity Max. 98 %RH, non-condensing
Weight and Dimensions 6U 19″ Module / With enclosure
Height: 267 mm (10.5″) / 318 mm (12.5″)
Width: 483 mm (19″) / 533 mm (21″)
Depth: 559 mm (22″) / 616 mm (24.25″)
Weight: 53 kg (117 lbs) / 70 kg (154 lbs)
* Highest generated dew point is limited by ambient room temperature
