G2 Dew Point Generator

The G2 produces highly accurate humidity values, delivering a humidified gas stream, accurately controlled to a variety of user-selectable humidity parameters such as %RH, dew point, frost point, ppm, or vapor pressure. By accurately measuring the temperature and pressure at the point where the humidified gas is utilized, the G2 automatically adjusts for changes in dynamic conditions such as heat load or ambient pressure variation.

With RH Systems’ hybrid humidity generation technique, the G2 is a true humidity reference instrument suitable for high accuracy calibration, product conditioning, and test applications.
High Flow Capability
With flow rate capacity up to 100 standard liters per minute, the G2 ensures your external volume or test chamber rapidly achieves a stable, homogeneous humidity condition based on your defined RH or dew point setting.

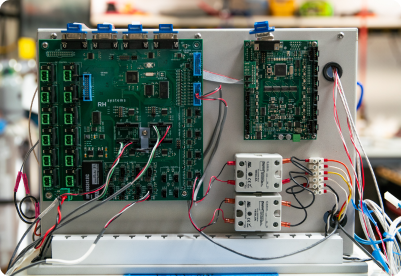

Embedded System For Control
Operations are automated with real-time, embedded control systems. Its setpoints are commanded and data is retrieved via robust serial communications. There are three fully capable, yet fully independent RS-232 serial ports, allowing for a variety of communication options.
Multiple External Temp Connections
By splitting the high-flow gas stream and feeding into three separate chambers, with each chamber controlled at a different temperature, three unique %RH values will be produced. The G2 computes the resulting %RH at each of these three chambers based on the three external temperature measurements.
a true humidity reference instrument

High Accuracy Calibration, Product Conditioning & Test Applications.

Request a Quote

Specifications

Operation

Documents

Warranty

Accessories

Specifications

Specifications

The G2’s specifications are outlined, below

Generator Ranges:
Frost/dew point* -25 … +20°C
Relative humidity 10 … 95 %RH
Flow rate 5 … 100 l/min
Saturator pressure Ambient … 12 bar
(Ambient … 175 psia)
Measurement Ranges:
External temperature sensor -50 … +100 °C
External pressure sensor 700 … 1,200 mbar
(10.2 … 17.4 psia)
Performance:
Dew point stability ≤ ±0.02 °C
RH stability ≤ ±0.1 %RH
Pressure stability ≤ ±1 mbar
(≤ ±0.015 psia)
Saturator temperature stability ≤ ±0.01 °C
Flow control ≤ ±0.5% of full scale
Response time 10 … 90 %RH: < 5 min
Standard Features:
External temperature sensor(s) Up to 3 simultaneous sensors, 100 ohm PRT
Pressure sensor Internal with 1/8″ Swagelok connection
Saturator water level Automatic level control, 1/4″ Swagelok water inlet
Gas Connection, inlet 1/4″ Swagelok, internally pressure regulated
Gas connection, outlet 1/2″ Swagelok, internally flow regulated
Control and data acquisition Optional touch screen controller and/or PC software
Size 6U, 19″ rack mountable module
Digital I/O 3, simultaneous, independent RS-232 connections
Additional Information
Power requirements 208-240 VAC, 50-60 Hz, 1500 W
Input pressure Max. 16 bar, oil free
Operation temperature* -10 … +40 °C (must be higher than generated dew point)
Storage temperature -20 … +50 °C
Humidity Max. 98 %RH, non-condensing
Weight and Dimensions 6U 19″ Module / With enclosure
Height: 267 mm (10.5″) / 318 mm (12.5″)
Width: 483 mm (19″) / 533 mm (21″)
Depth: 559 mm (22″) / 616 mm (24.25″)
Weight: 53 kg (117 lbs) / 70 kg (154 lbs)
* Highest generated dew point is limited by ambient room temperature

Operation

Operation

The G2 has specific facility requirements. Please read the entire G2 manual before operating.

Documents

Documents

Warranty

Warranty

RH Systems (RHS) warrants the products it manufactures or distributes to be free of defects in material and workmanship under normal use and service when operated within the specified design limitations for a period of 12 months from date of initial shipment. Under this Warranty, RHS will, at its discretion, repair or replace any component that upon examination by RHS or its duly authorized representatives proves to be defective during the warranty period provided the system is returned to the factory for inspection and repair shipping prepaid. Improper or unauthorized maintenance, storage, repair, or alteration of any kind by personnel other than RHS or its duly authorized representatives may void all warranties. Warranty may also be voided for misuse, neglect, accident, corrosion, and improper installation. This Warranty is exclusive and in lieu of any and all other warranties of merchantability, fitness for a particular purpose, or any other warranty, expressed or implied, and all other liabilities and obligations on the part of RHS. RHS will not be liable for any other claims or damages, either direct, indirect, or consequential arising out of the use of its products.

Accessories

Accessories

High Flow Capability

With flow rate capacity up to 100 standard liters per minute, the G2 ensures your external volume or test chamber rapidly achieves a stable, homogeneous humidity condition based on your defined RH or dew point setting.

Embedded System For Control And Communication

Operations are automated with real-time, embedded control systems. Its setpoints are commanded and data is retrieved via robust serial communications. There are three fully capable, yet fully independent RS-232 serial ports, allowing for a variety of communication options.

Determine %Rh With Multiple External Temperature Connections

By splitting the high-flow gas stream and feeding into three separate chambers, with each chamber controlled at a different temperature, three unique %RH values will be produced. The G2 computes the resulting %RH at each of these three chambers based on the three external temperature measurements.
