Introducing RH Systems Revolutionary

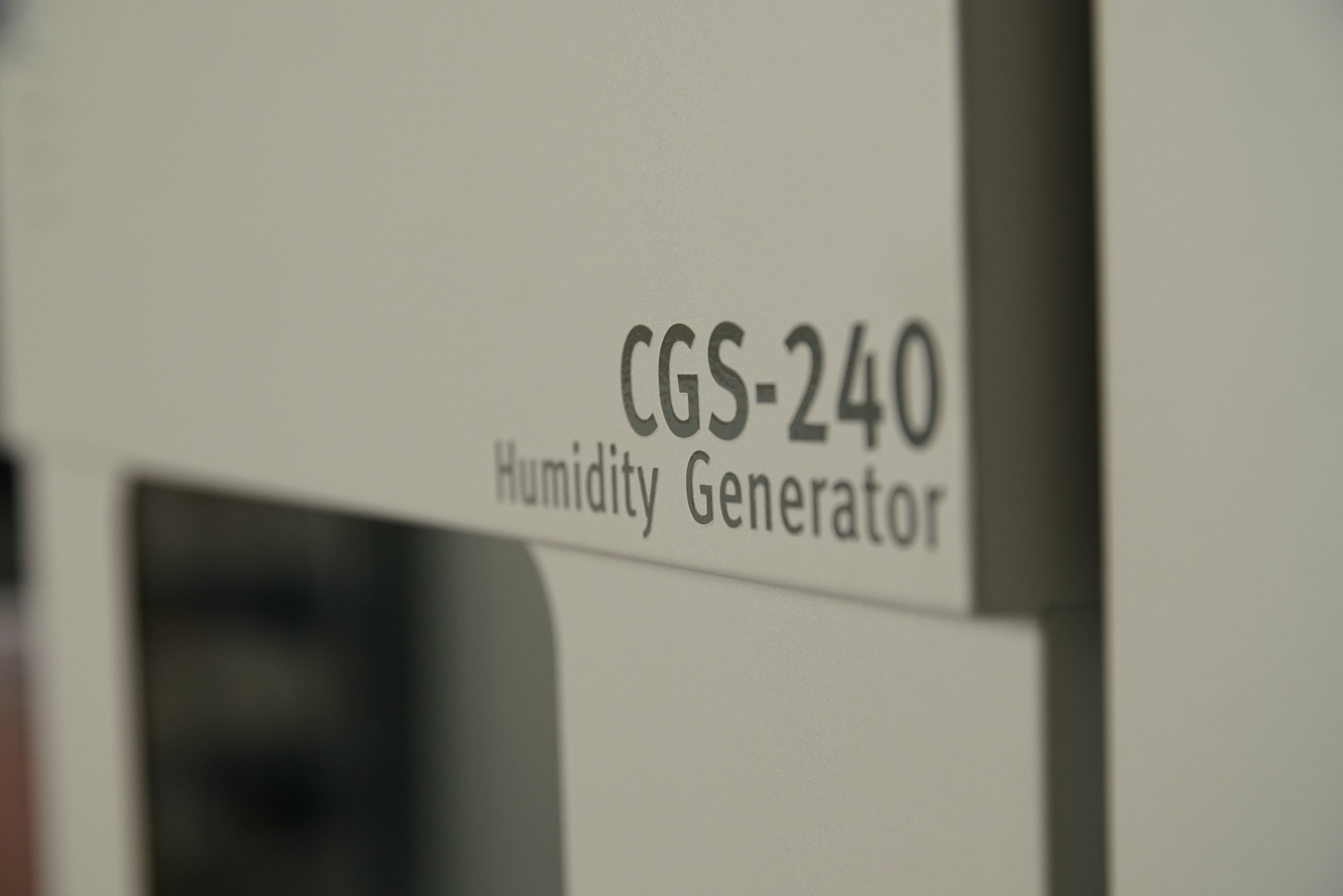

CGS-240 Humidity Generator

RHS Video
CLOSE X
RH Systems Founder, Bob Hardy, walks through what makes our CGS-240 revolutionary for calibration technicians.

Humidity Generation

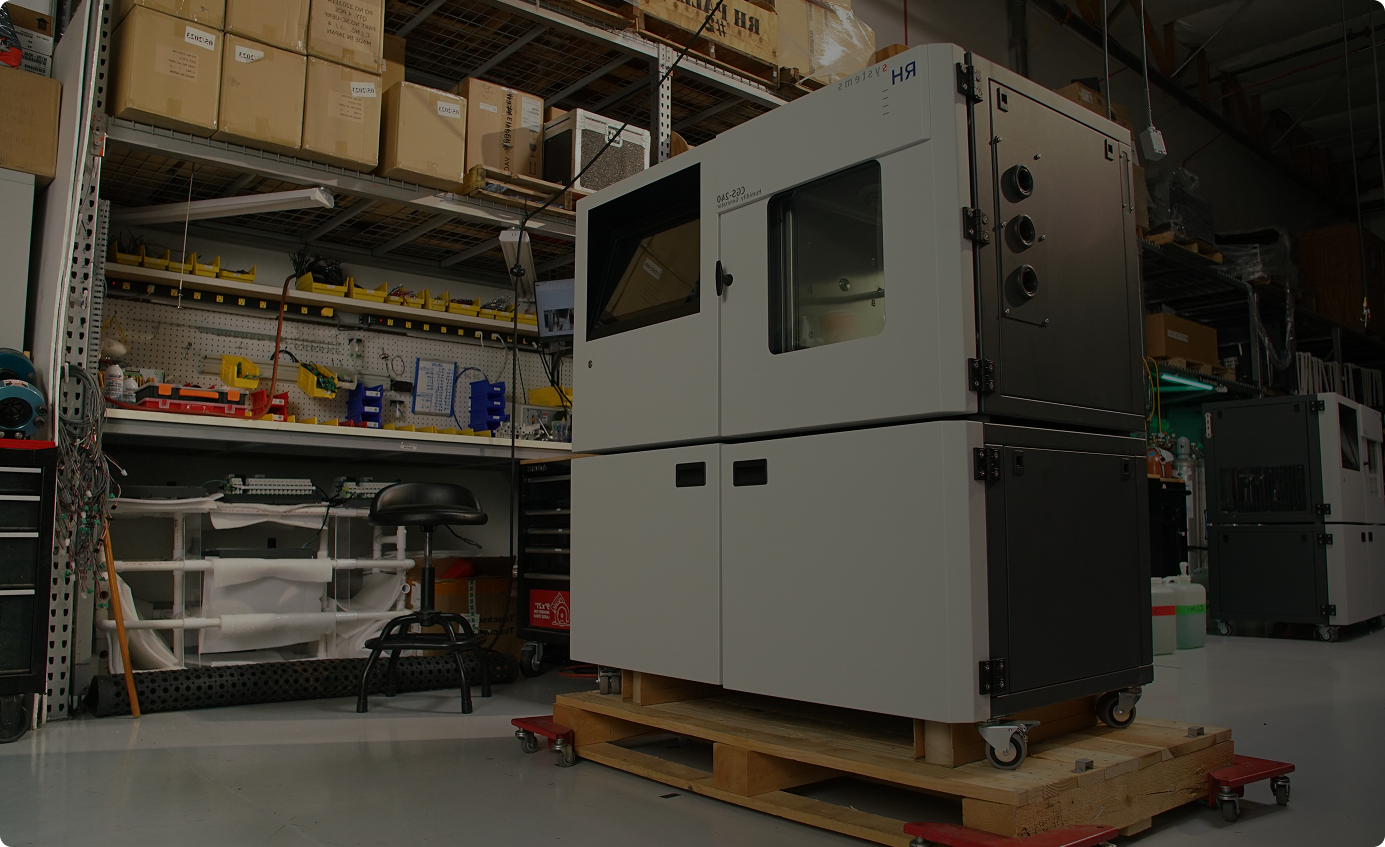

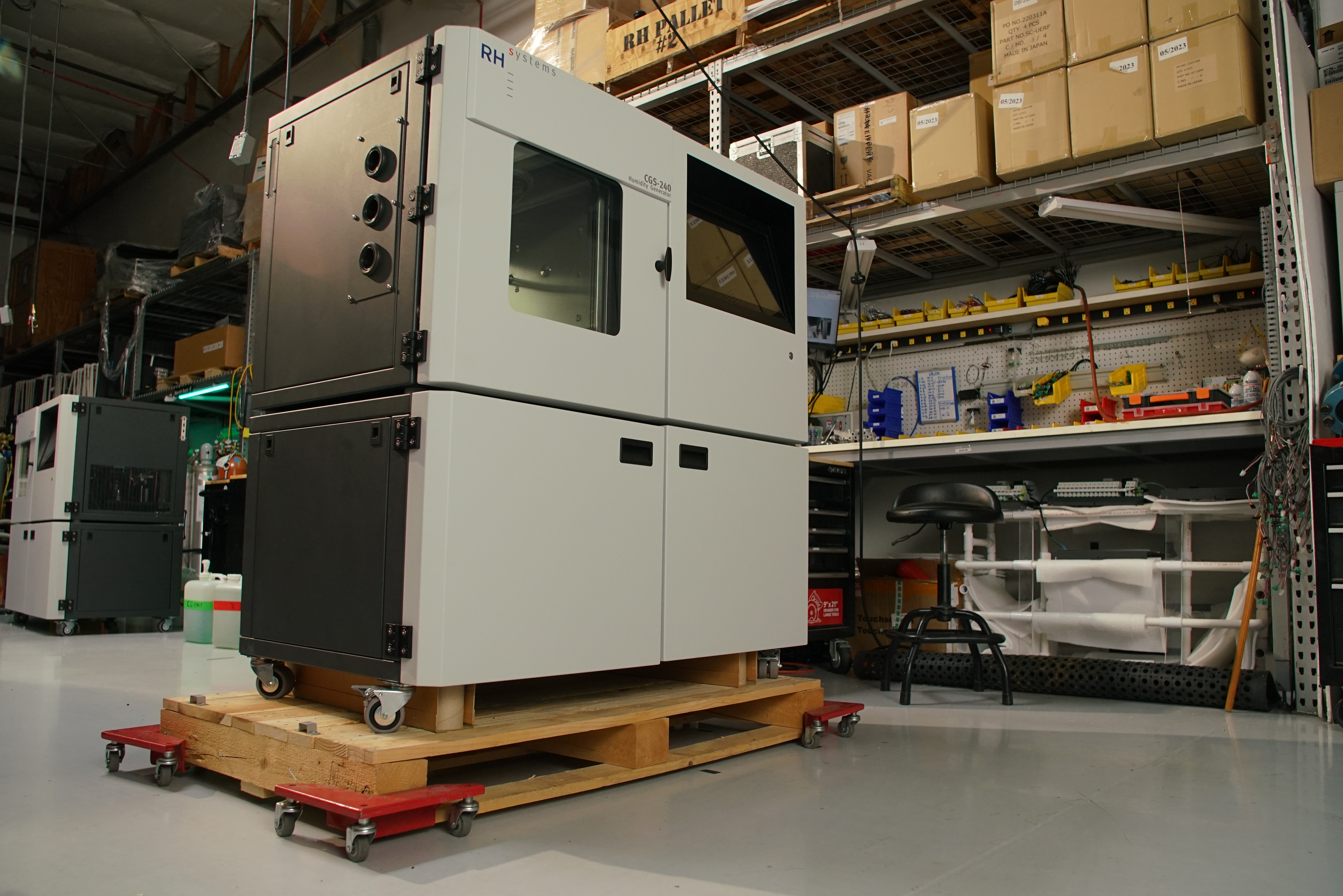

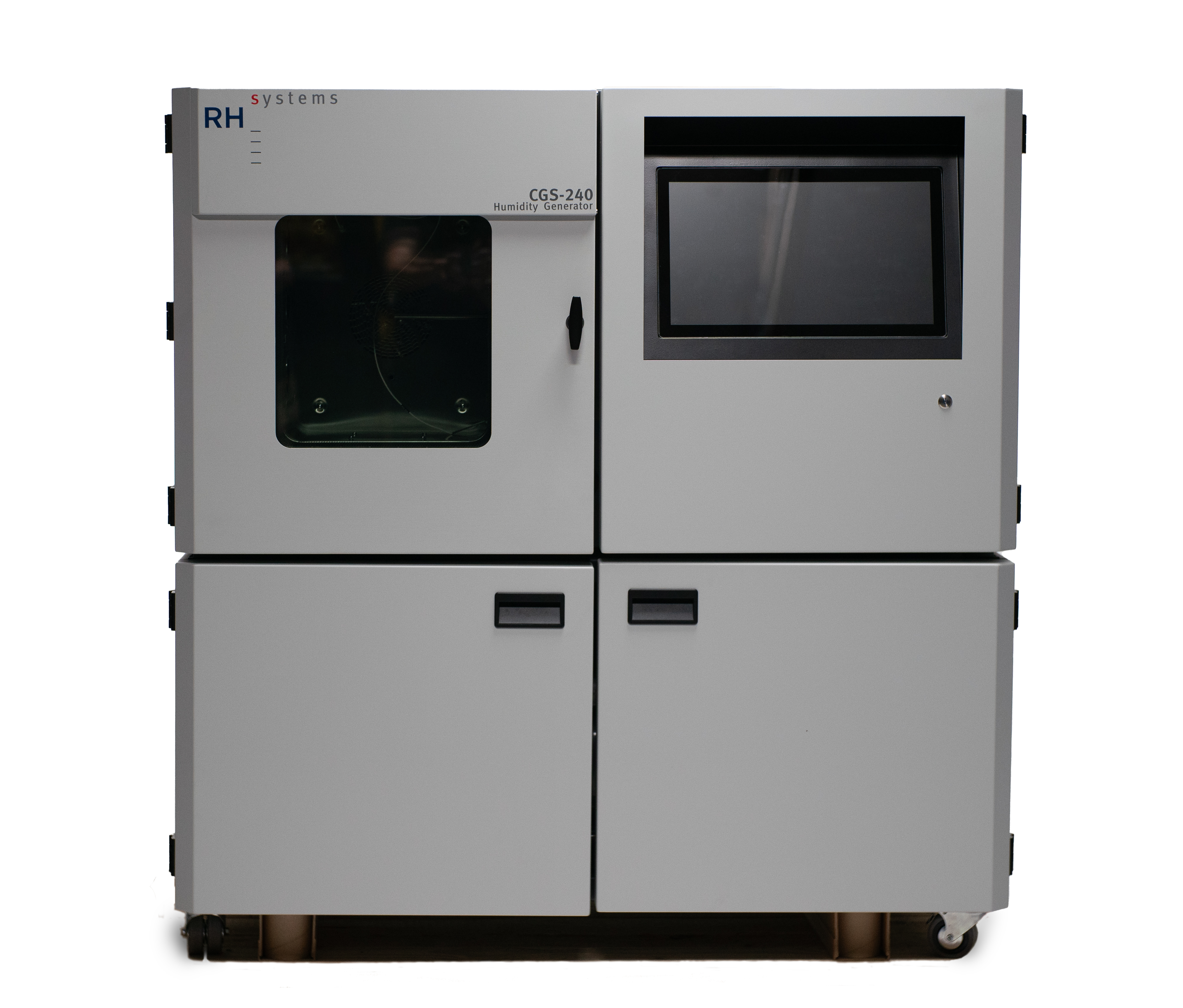

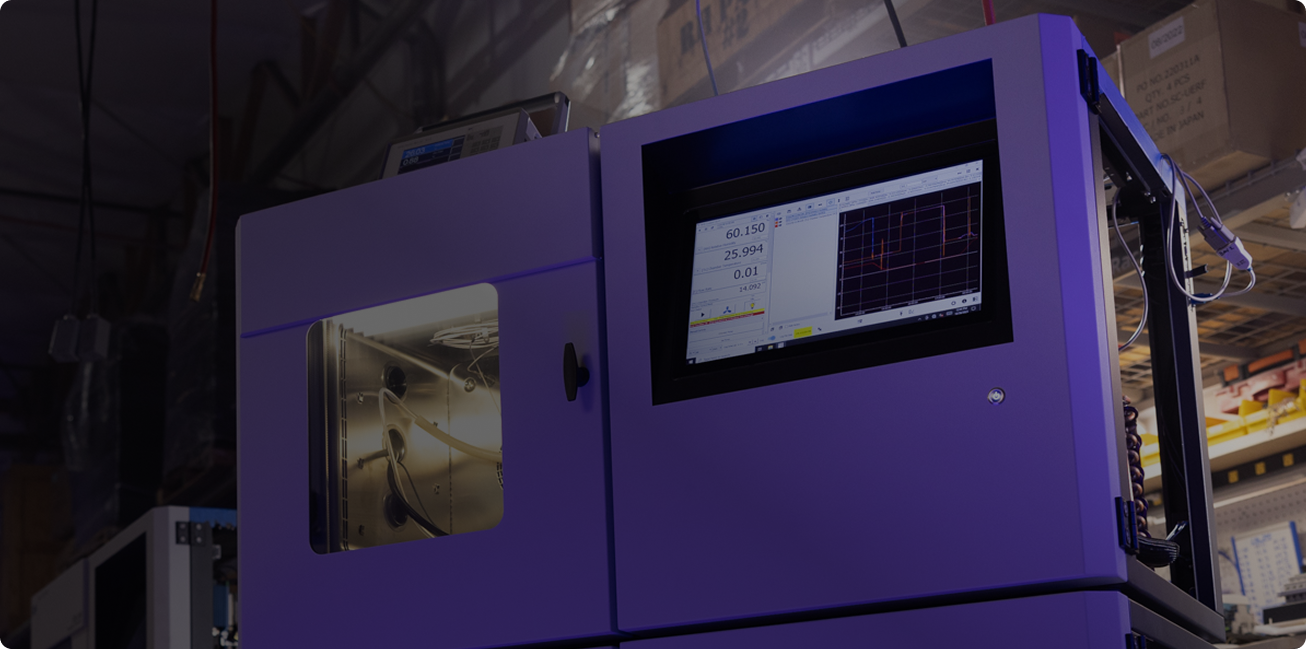

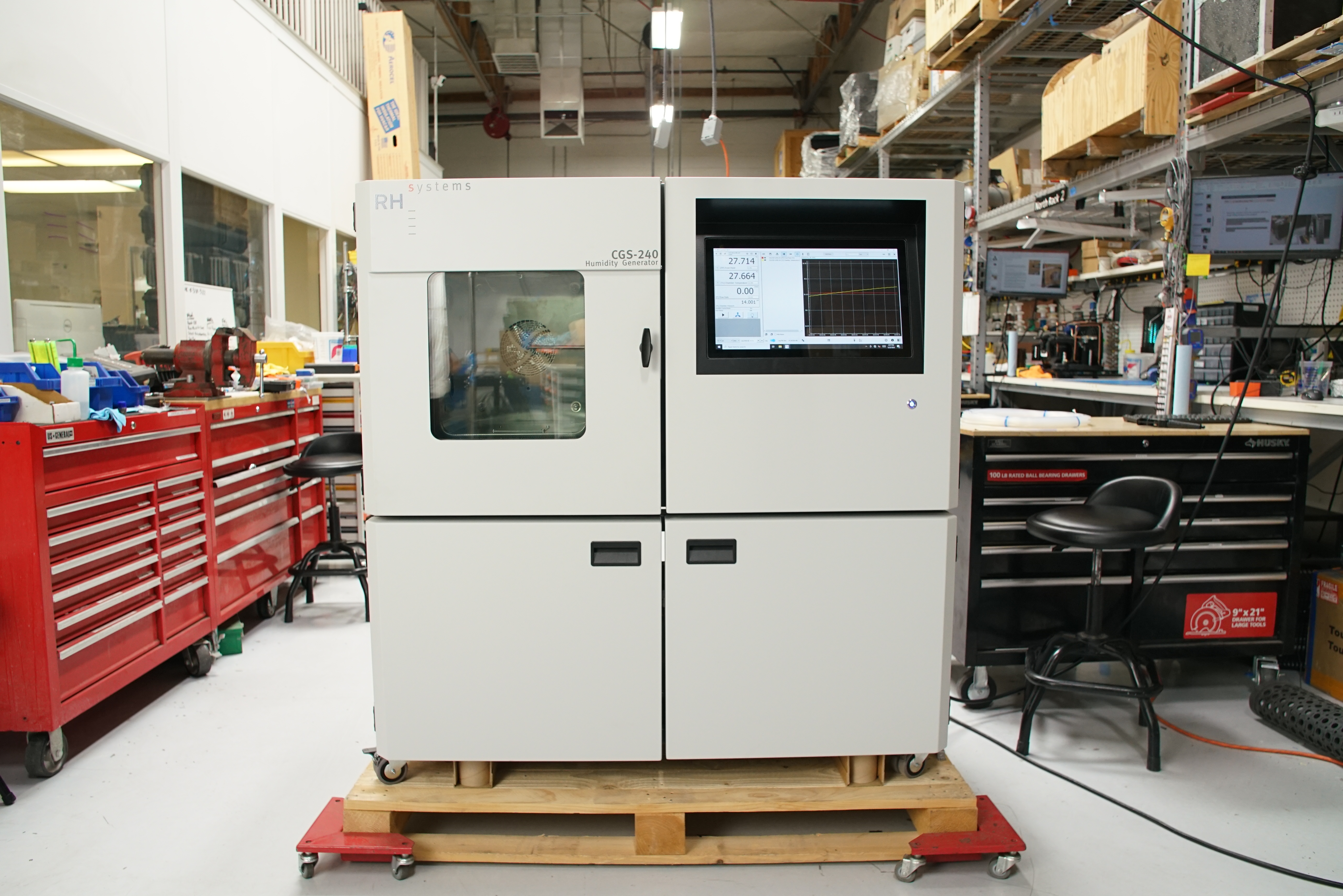

The CGS-240 is a fully automated two-pressure, two-temperature humidity generator. This portable, self-contained system produces stable atmospheres of known humidity and temperature to provide accurate humidity and temperature for the calibration of humidity sensors, hygrothermographs, chilled mirror hygrometers, and other environmental measuring devices.

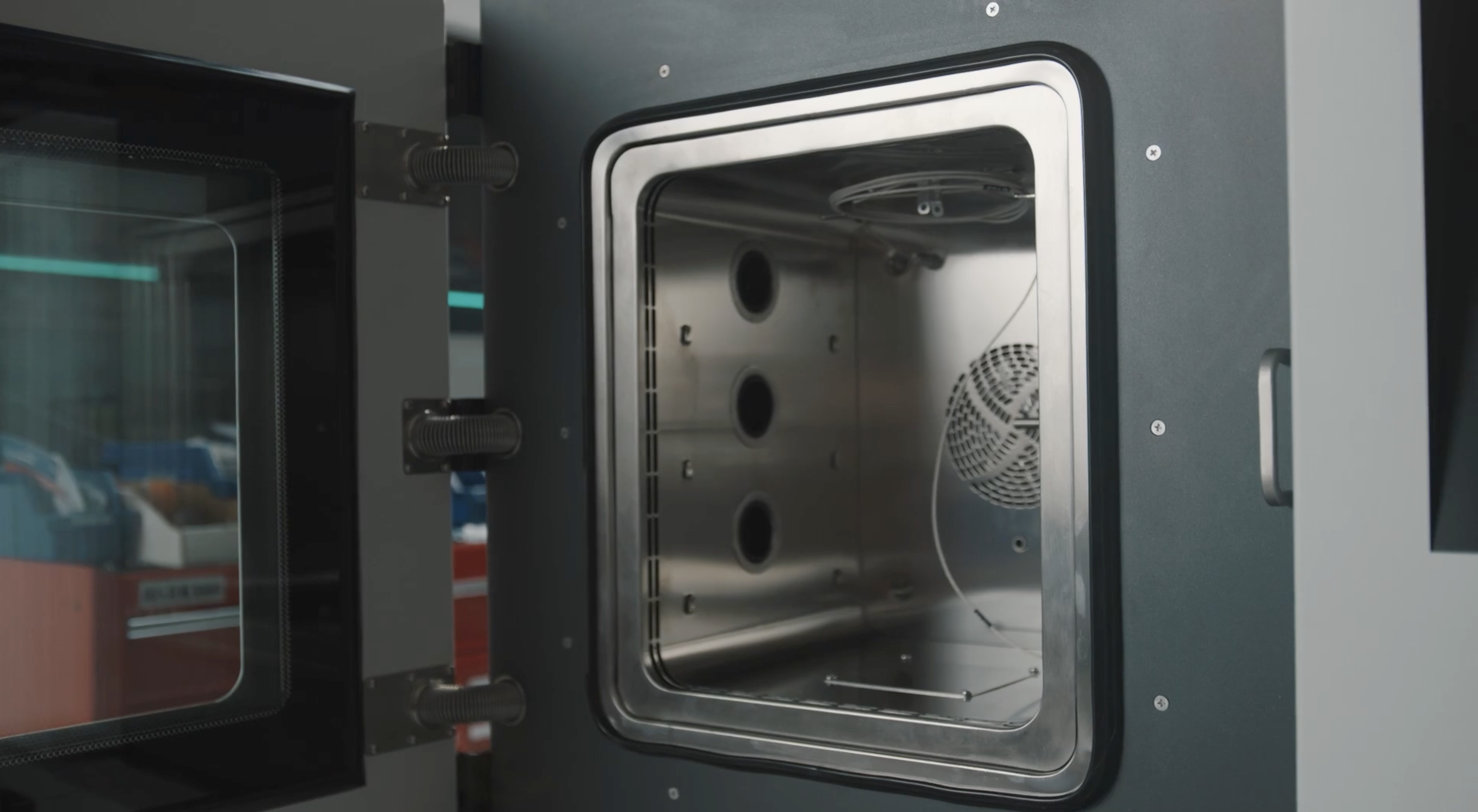

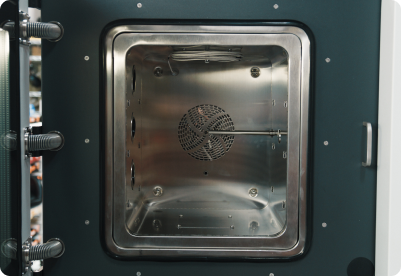

Large, Thermally Uniform Chamber

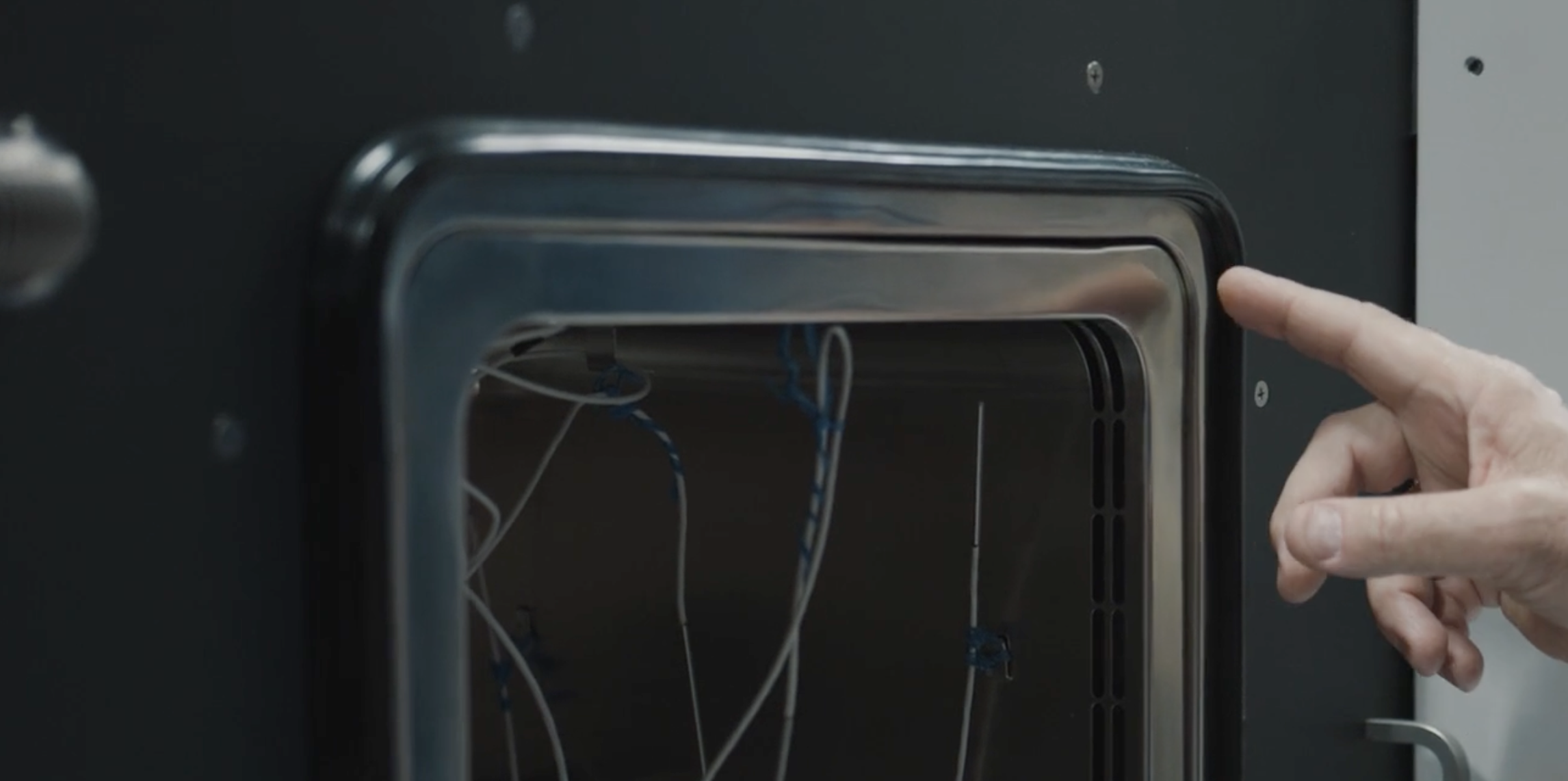

A cable management system, sample gas injection to the center of an air circulation fan, local pressure measurement, and a multi-position shelving system is surrounded by high performance thermal insulation and a soft silicone profile seal for perfect tightness.
Continuous Run Time, No Down Time

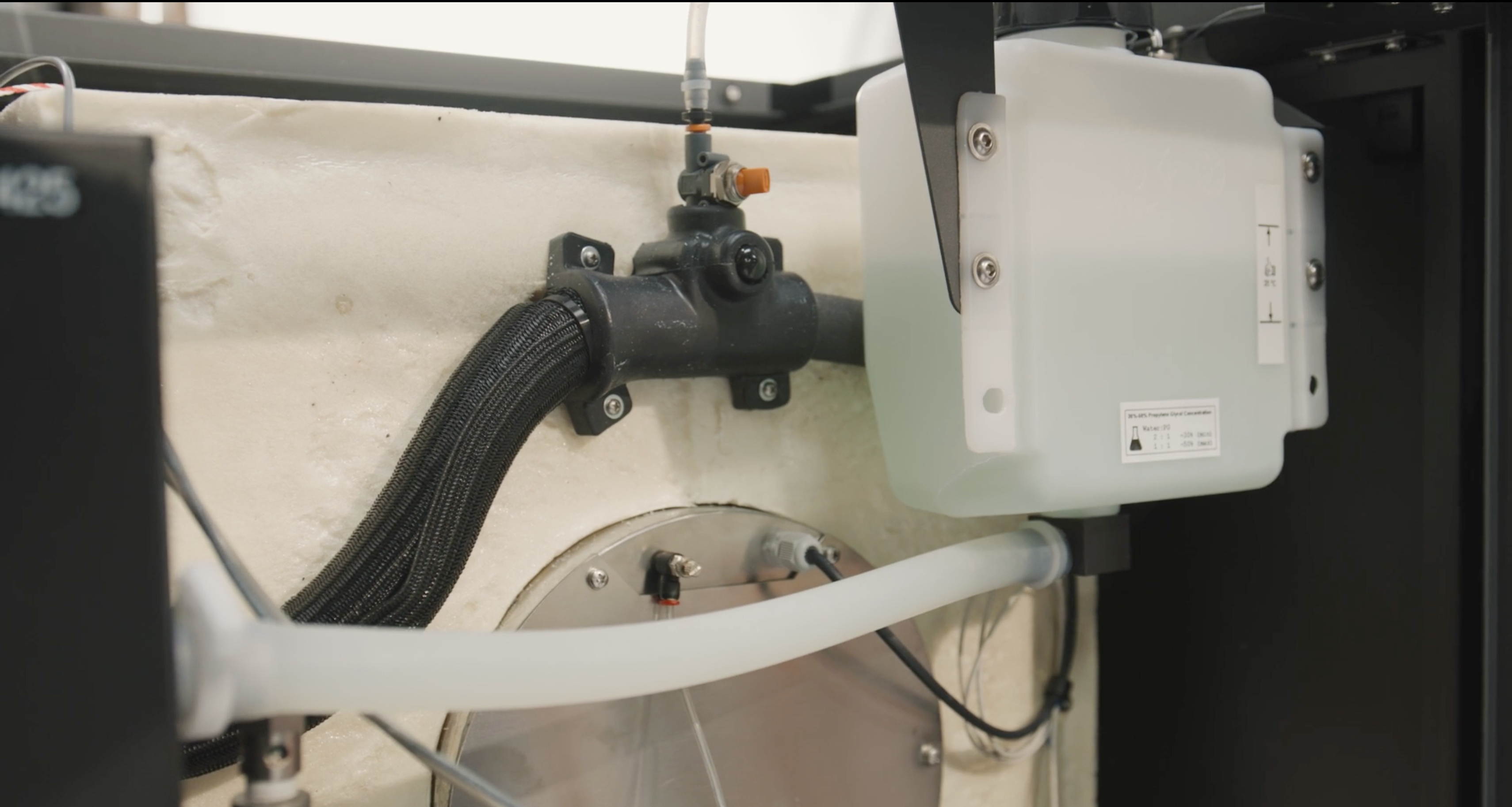

The CGS-240 may run continuously without the need to shut down (the only requirement being that sufficient water level is maintained in the 20 liter distilled water reservoir). The reservoir may be filled at any time without the need to stop the system, thereby allowing uninterrupted generation of humidity for days, weeks, or months.

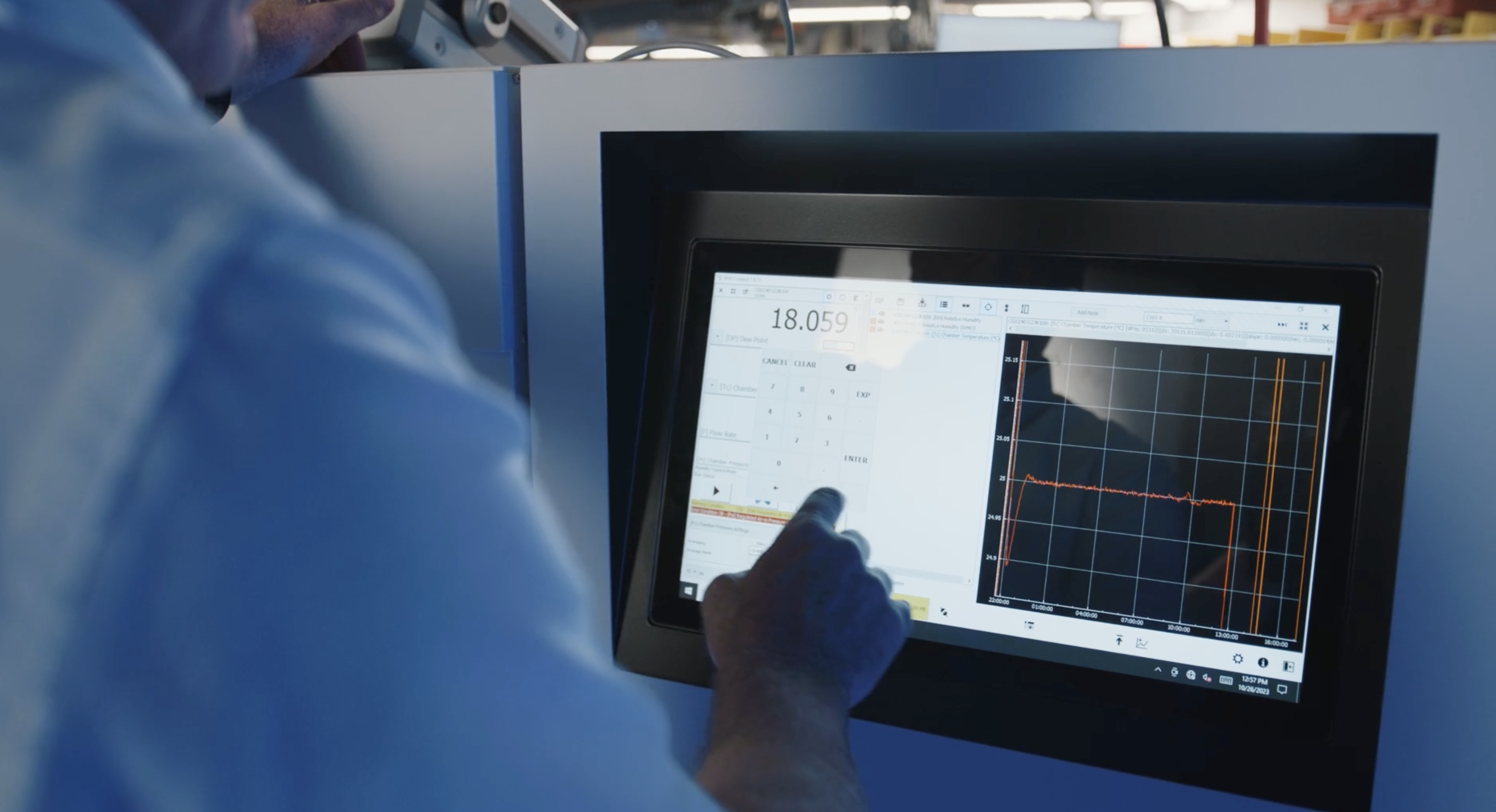

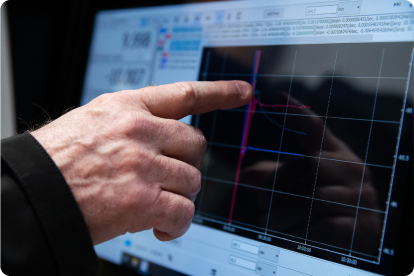

Continuous Data Collection

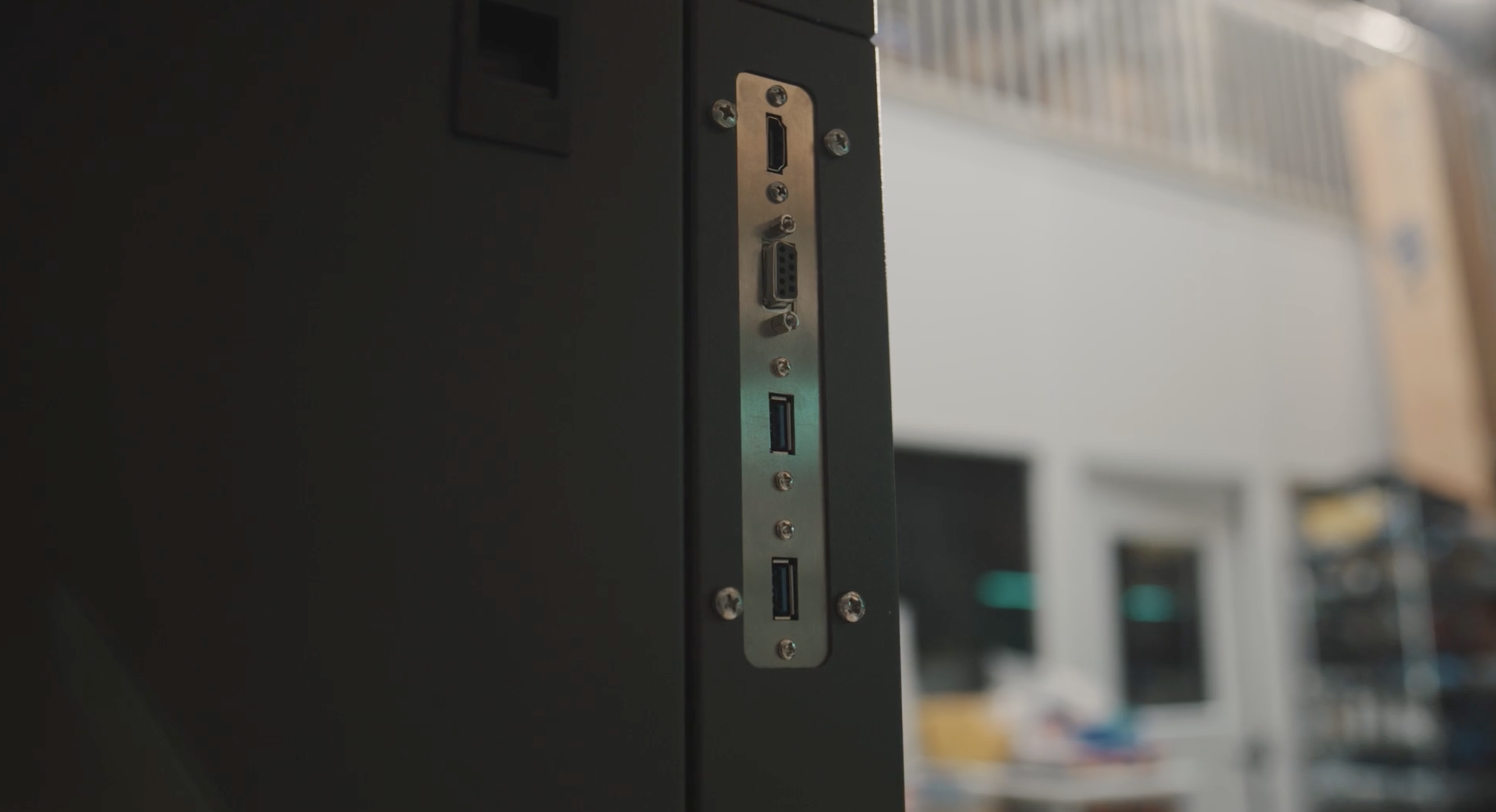

RHS Control allows for various instruments to connect via digital communication for continuous monitoring, control, and associated data collection. Data is automatically stored to files during collection for later import to Excel and other post-process analysis and graphing programs.
Large Chamber, No down time, High-Accuracy

A Humidity Generator Built for Calibration Technicians

Request a Quote

Design Based On Fundamental NIST Developed Principles

A system capable of continuous, high-accuracy humidity generation over a wide range of humidity, temperature, and flow rates.

Specifications

Operation

Documents

Warranty

Accessories

Specifications

Specifications

The CGS-240’s specifications are outlined, below

Generating Range:
Relative Humidity 10 … 95 %RH (5 %RH optional)
Dew/Frost Point -25 … 70 °C DP, -23 … 0 °C FP
Chamber Temperature -0 … 72 °C (-10 & +85 °C extended ranges optional)
Chamber Pressure Ambient
Flow Rate 5 … 20 SLPM (5 … 50 SLPM optional
Accuracy: (0 to 70°C, 10 to 40 l/min)
Relative Humidity The larger of ±0.1 %RH or ±0.5% of indicated RH value
Dew/Frost Point ±0.10 °C
Temperature (TS, TC) ±0.030 °C
Pressure ±0.02% of full scale
Chamber Temp Uniformity <0.035 °C
Flow Rate ±1 SLPM
Integrated Sensors: Cal Range: Cal Uncertainty:
Low Range Pressure (PL) Ambient … 25psia ±0.005 psia
High Range Pressure (PH) Ambient … 150psia ±0.030 psia
Saturator Temperature (TS) -15 … 72 °C ±0.03 °C
Chamber Temperature (TC) 0 … 72 °C ±0.03 °C
Chamber Liquid Temp (TCL) 0 … 72 °C ±0.10 °C
Presaturator Temp (TP) 0 … 75 °C ±0.10 °C
Flowmeter 0 … 50 SLPM ±1 SLPM
Chamber:
Dimensions 15”H x 12”W x 12”D (380 x 300 x 300 mm)
Type Circulating air-jacket encased within liquid jacket
Adjustable Shelf Three shelf positions, one shelf supplied

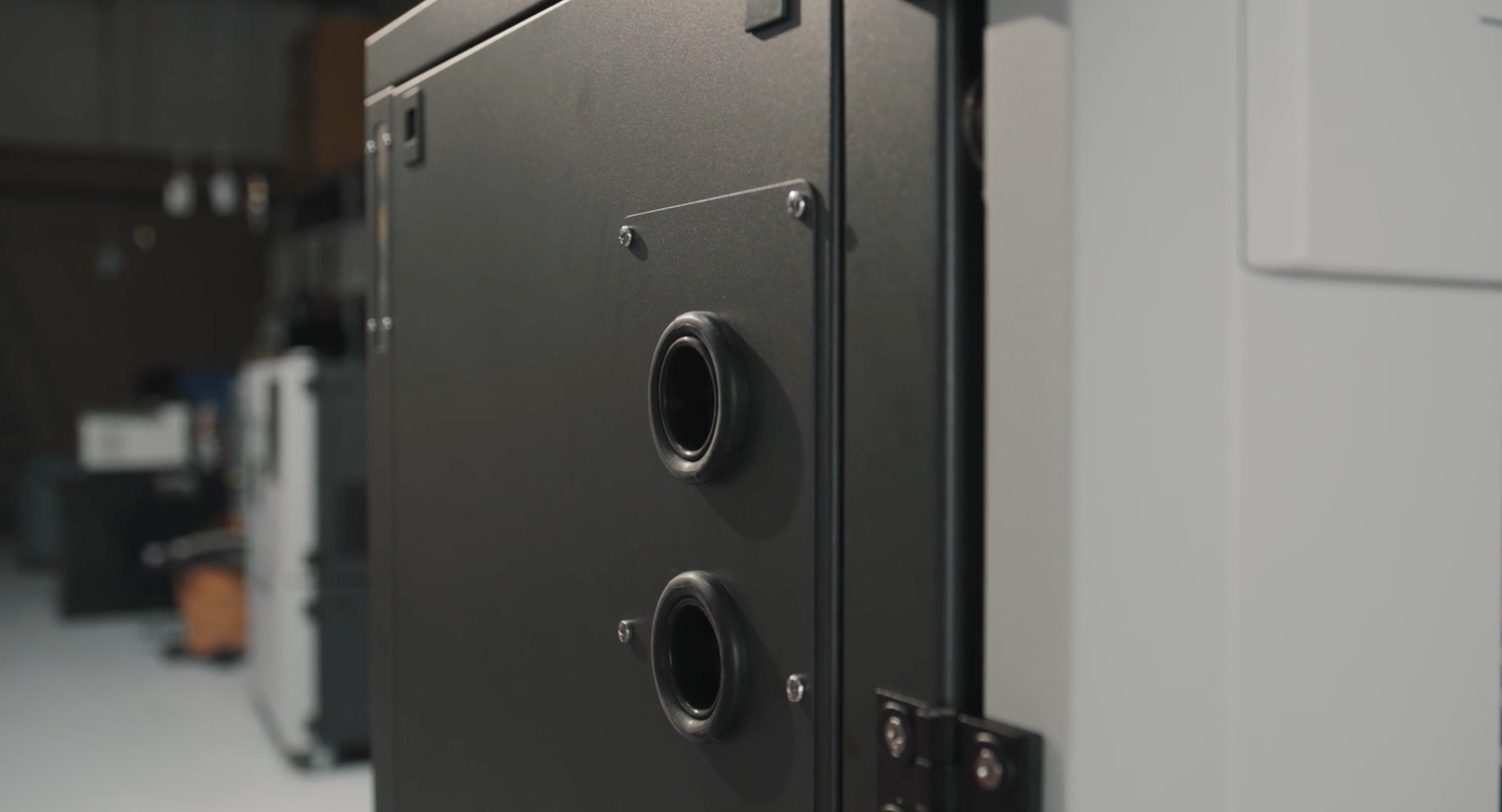

Access Ports Three 50 mm diameter thermally controlled access ports
Window Size 14”H x 12”W x 12”D (370 x 300 x 300 mm)
Window thermal control Liquid jacketed, multi-pane, thermally controlled
Chamber light Integrated light with on/off touchscreen control
Integrated Control Interface:
Operation Software RHS Control Software
Calibration Software RHS Plateau Software
Display 18.5” Multi Touch Monitor with pinch/zoom/drag
Gas Inlet Pressure:
Using external pressure source 120 psig max
Using supplied air compressor 60 … 90 psig @ 20 l/min typical
Environmental Conditions:
Operating Environment 15 … 30 °C, 20 … 60 %RH
Storage Environment 0 … 50 °C, <95 %RH non-condensing
Power Requirements:
Voltage 208 … 240 VAC, 50/60 Hz, single phase
Current 20 Amps

Operation

Operation

The CGS-240 has specific facility requirements. Please read the entire CGS-240 manual before operating.

Documents

Documents

Learn more about our CGS-240 Humidity Generator

Warranty

Warranty

RH Systems (RHS) warrants the products it manufactures or distributes to be free of defects in material and workmanship under normal use and service when operated within the specified design limitations for a period of 12 months from date of initial shipment. Under this Warranty, RHS will, at its discretion, repair or replace any component that upon examination by RHS or its duly authorized representatives proves to be defective during the warranty period provided the system is returned to the factory for inspection and repair shipping prepaid. Improper or unauthorized maintenance, storage, repair, or alteration of any kind by personnel other than RHS or its duly authorized representatives may void all warranties. Warranty may also be voided for misuse, neglect, accident, corrosion, and improper installation. This Warranty is exclusive and in lieu of any and all other warranties of merchantability, fitness for a particular purpose, or any other warranty, expressed or implied, and all other liabilities and obligations on the part of RHS. RHS will not be liable for any other claims or damages, either direct, indirect, or consequential arising out of the use of its products.

Accessories

Accessories

Design Based On Fundamental NIST Developed Principles

A system capable of continuous, high-accuracy humidity generation over a wide range of humidity, temperature, and flow rates.

Large, Thermally Uniform Chamber

The system incorporates a cable management system, sample gas injection into the center of an air circulation fan, local pressure measurement, and a multi-position shelving system. These components are enclosed within high-performance thermal insulation and sealed with a soft silicone profile to ensure a perfectly tight environment.

Continuous Run Time, No Down Time

The CGS-240 may run continuously without the need to shut down (the only requirement being that sufficient water level is maintained in the 20 liter distilled water reservoir). The reservoir may be filled at any time without the need to stop the system, thereby allowing uninterrupted generation of humidity for days, weeks, or months.

Continuous Data Collection

RHS Control allows for various instruments to connect via digital communication for continuous monitoring, control, and associated data collection. Data is automatically stored to files during operation for later import to Excel and other post-process analysis and graphing programs.
